1: Product Description of Steam Generator

Generator has compact appearance, compact internal structure, machine equipped with automatic water supply pump, water level Control, pressure Control, and it is the
use of high quality heating elements, reached the surface of the heat load is low, high thermal efficiency.
2. The product volume is less than the national exemption requirements specified volume 30L, avoiding the complicated approval procedures examined.
3. Built-in separator, to solve the problem with the water vapor, more to ensure the quality of steam.
4. One-step automatic control. Just need to connect water and electricity, press the switch button, boiler will automatically enter the automatic running, safety and more peace of mind.
5. Chain with multiple security features. Electrical components using by CCC and CE certified products, to ensure product quality and customer interests.
6. Electricity for energy, no pollution, no noise,more is in line with environmental requirements .

2: Technical Parameter of Steam Generator

Model	WM-SSG6	WM-SSG9	WM-SSG12	WM-SSG18	WM-SSG24	WM-SSG36
Capacity	8kg	12kg	20kg	25kg	40kg	50kg
Power	6kw	9kw	12kw	18kw	24kw	36kw
Pressure	0.7Mpa	0.7Mpa	0.7Mpa	0.7Mpa	0.7Mpa	0.7Mpa
Steam Temperature	170℃	170℃	170℃	170℃	170℃	170℃
Voltage	220/380 /customized	220/380 /customized	220/380 /customized	380V/ customized	380V/ customized	380V/ customized

Model	WM-SSG48	WM-SSG54	WM-SSG60	WM-SSG72	WM-SSG96	WM-SSG108
Capacity	65kg	75kg	80kg	100kg	130kg	150kg
Power	48kw	54kw	60kw	72kw	96kw	108kw
Pressure	0.7Mpa	0.7Mpa	0.7Mpa	0.7Mpa	0.7Mpa	0.7Mpa
Steam Temperature	170℃	170℃	170℃	170℃	170℃	170℃
Voltage	380 / customized	380 /customized	380Vor customized	380V/ customized	380Vor customized	380Vor customized

Zhengzhou Wenming Machinery Co.,Ltd

Sales Manager：Ms. Audrey

Office:0086-13-303-831586

Whatsapp/Wechat：  +8618703678018

Email:  [email protected]

You can contact us to get more details of machines or let us know your requriement we can design and manufature machine according to your need.

Click to leave your information and requirements

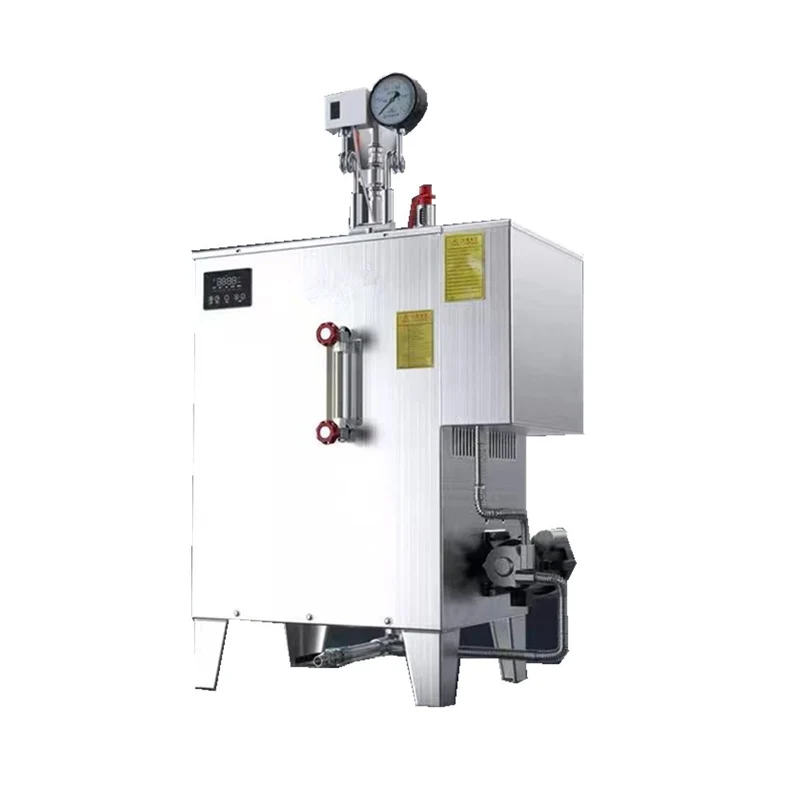

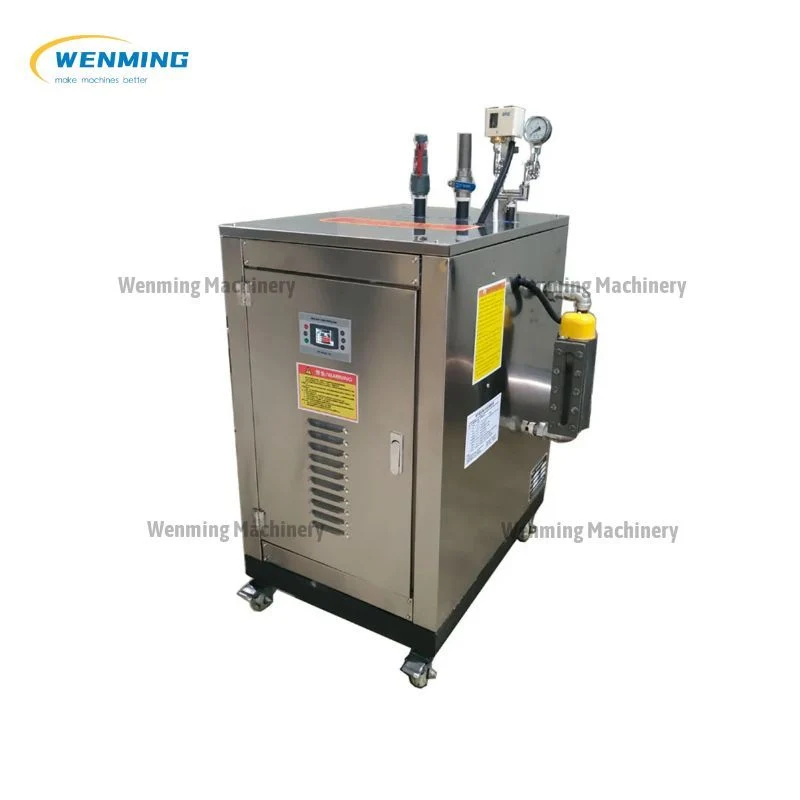

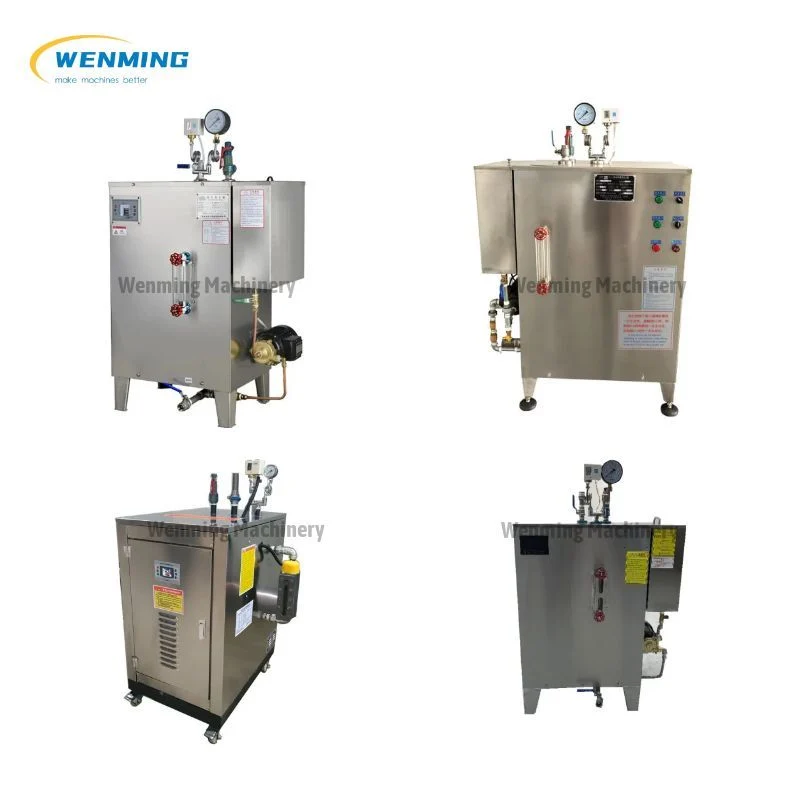

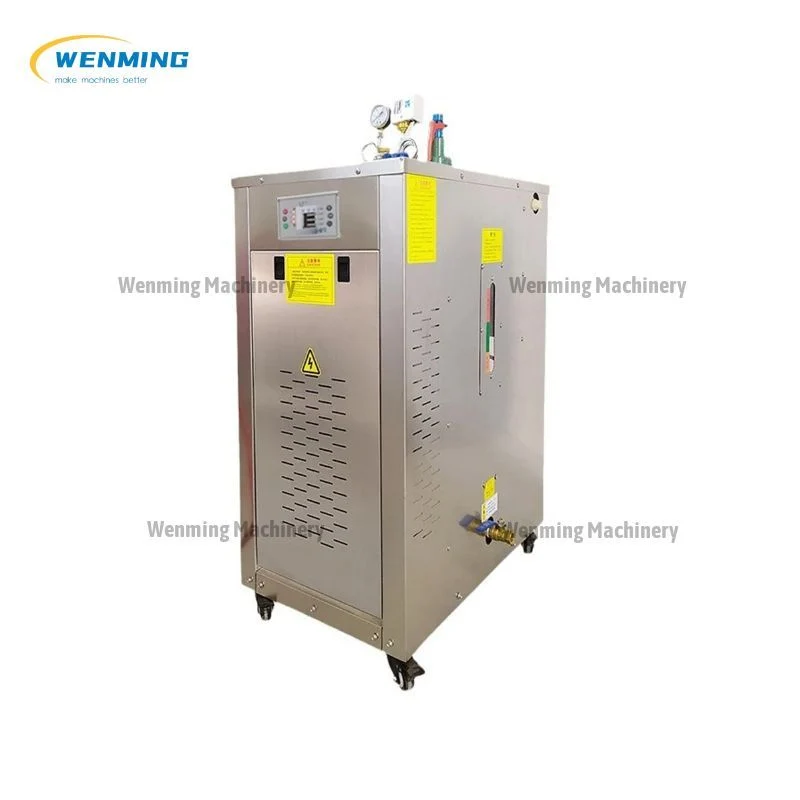

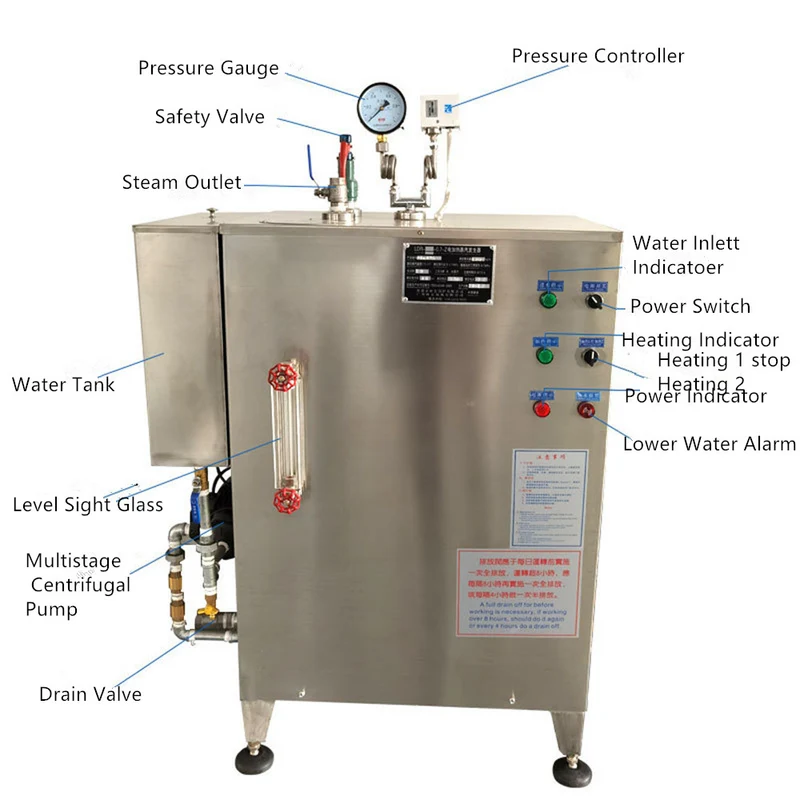

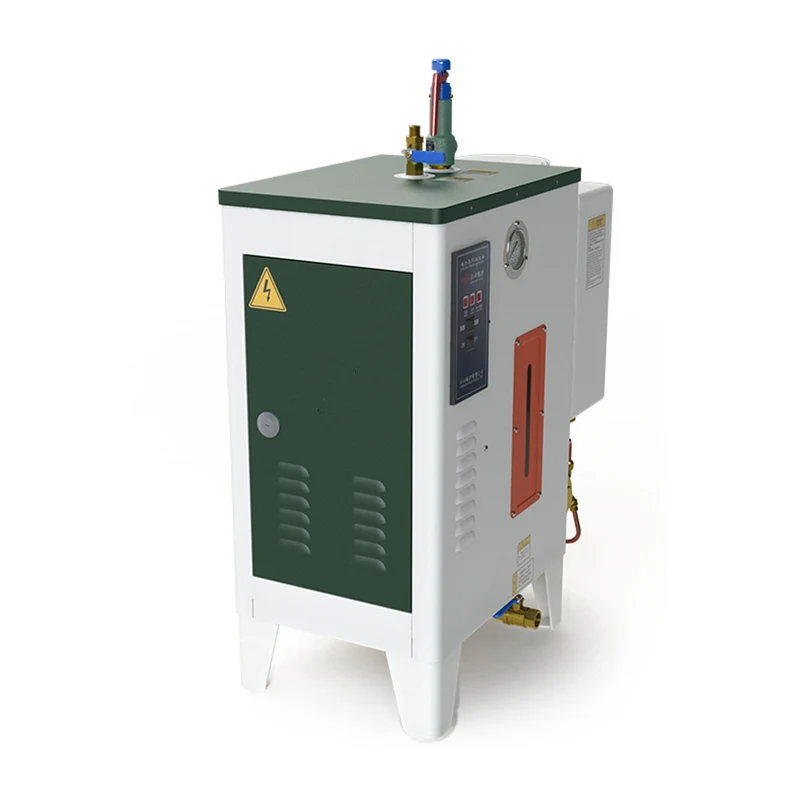

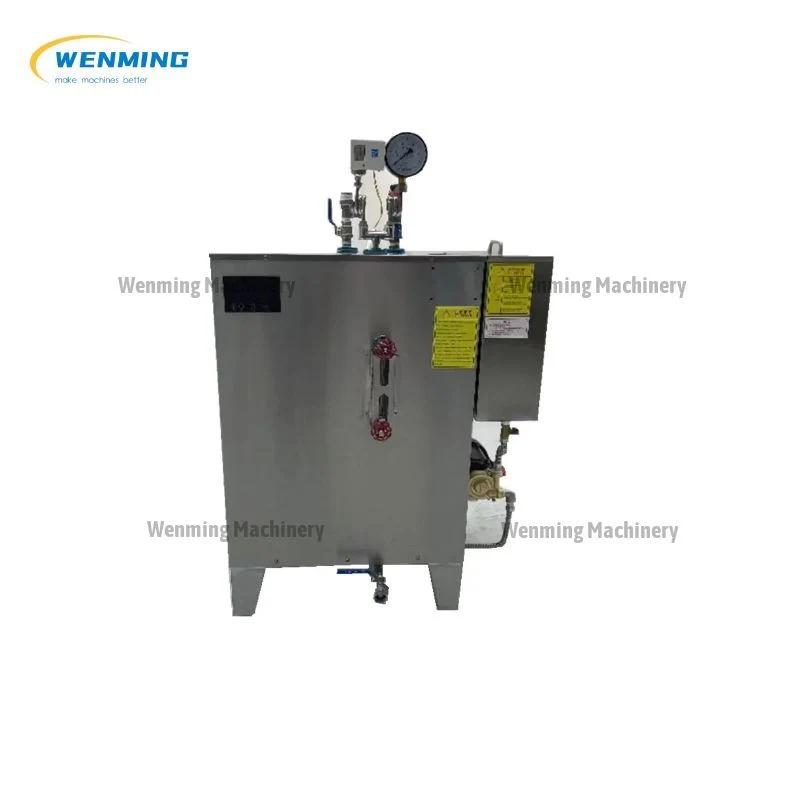

3: Picture of Steam Generator
