Efficient Textile Fusing Machine Fabric Fusing Machine Price

Efficient Textile Fusing Machine Fabric Fusing Machine Price

1.Product introduction of Textile Fusing Machine:

A fabric bonding machine is specialized equipment used to bond different layers of fabric together using heat, pressure, or adhesive. This machine is widely used in the textile industry for applications such as laminating, bonding nonwoven fabrics, and creating composite materials for garments, upholstery, and industrial fabrics.

Advantages:

(1). Advanced Technology: Our machines are built with cutting-edge technology to ensure fast, reliable, and high-quality bonding results.
(2). Custom Solutions: We offer customizable options to meet your specific bonding requirements, whether for small-scale operations or large-scale manufacturing.
(3). Reliable Support: Our team provides excellent customer service, including installation, training, and ongoing maintenance support.

2.Technical Parameters of Textile Fusing Machine:

Type 1-Mechanical Increase pressure (WM-NHG900/1200/1600/1800):

Model	WM-NHG500	WM-NHG600	WM-NHG900	WM-NHG1200
Voltage	1P/220V	1P/220V	3P/380V	3P/380V
Motor	40w	40w	180w	180w
Power	3.6kw	4.2kw	6.6kw	9.6kw
Max Pressure	2kg/cm²	2kg/cm²	4kg/cm²	4.3kg/cm²
Fusing Width	0-500mm	0-600mm	0-900mm	0- 1200mm
Fusing time	5-28sec	5-28sec	6-30sec	6-30sec
Temperature	0-200 ℃	0-200 ℃	0-200 ℃	0-200 ℃
N.W/G.W	172/203kg	120/170kg	500/650kg	600/750kg
Dimension(mm)	107*97*67	165*100*95	1300*810*1290	1600*810*1290

Type 2-Air Pressure Type-seamless Tape Bonding (WM-600AP/900AP/1200AP/1600AP/1800AP):

Model	WM-600AP	WM-900AP	WM-1200AP	WM-1600AP	WM-1800AP
Voltage	380V/50HZ
Power	9KW	12KW	14KW	19KW	22KW
Pressure Mold	Air Pressure Roller
Rubber Shaft Diameter	100mm*2
Temperature	0-220(ASR+SSR)
Heater material	Electric heat pipe And Aluminum alloy radiator
Hot Area Diameter	600*1200	900*1200	1200*1200	1600*1200	1800*1200
Max Fusing Width	0-600	0-800	0- 1200	0- 1600	0- 1800
Dimension	2.62*1. 18*1.28	2.62*1.48*1.28	2.62*1.78*1.28	2.62*2.18*1.28	2.62*2.38*1.28
Wooden Box Size	1.81*1.35*1.5	1.81*1.81*1.5	1.95*1.81*1.5	2.35*1.81*1.5	2.55*1.81*1.5
Belt                Automatic Adjustment	Automatic
Speed Range	2- 15m/min
Belt	Seamless belt
Speed Control System	Conversionand Gear motor
Internal Structure	Linear Structure,Clear and Sample
About safety	Full Range Use Scram Button

Contact Us to Get a Quote

Zhengzhou Wenming Machinery Co.,Ltd Address: Waibao Industrial Park No. 139 Yangjin Road Jinshui District Zhengzhou City, Zhengzhou, Henan, China. Office:0086-13-303-831586  Whatsapp/Wechat：+8615638141737 Email:  [email protected] You can contact us to get more details of machines or let us know your requriement we can design and manufature machine according to your need. Click to leave your information and requirements

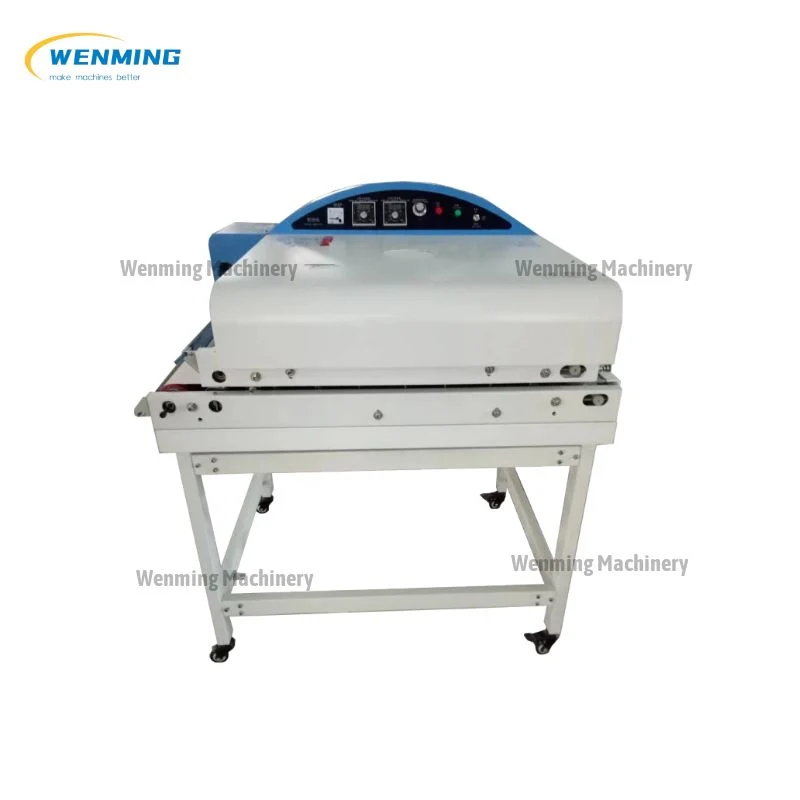

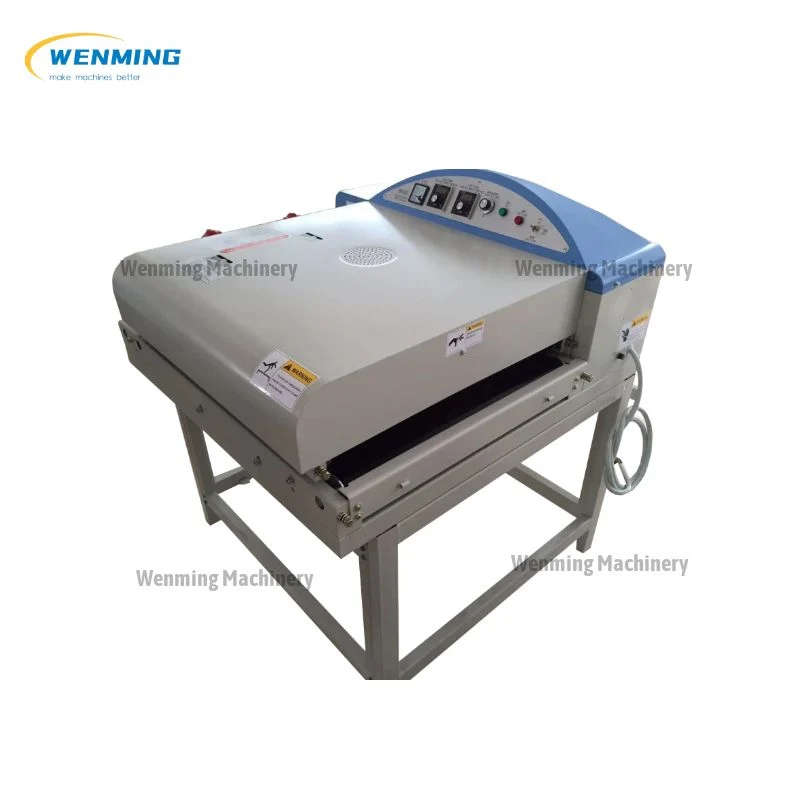

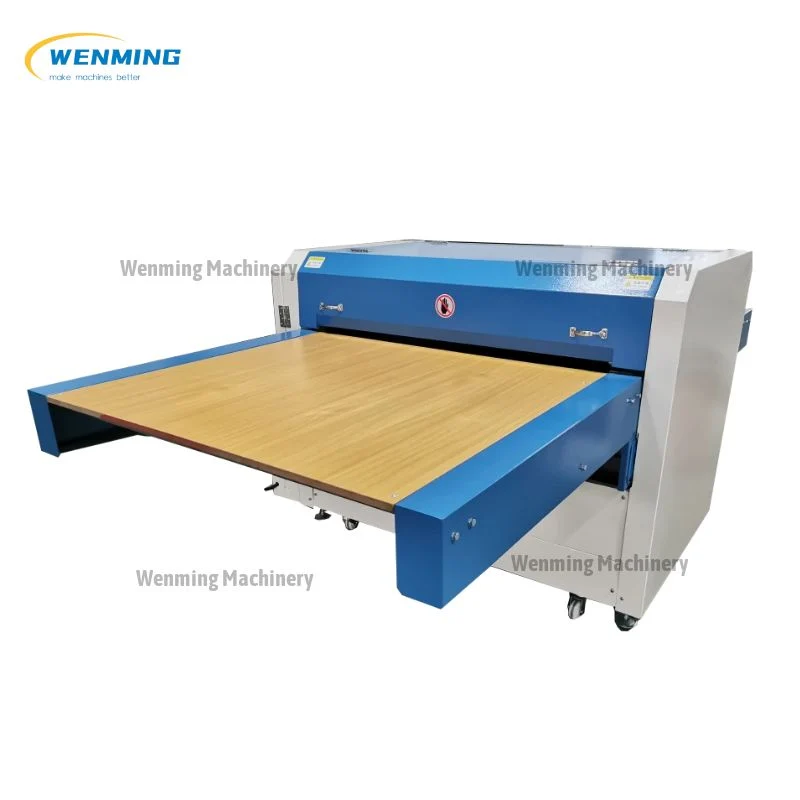

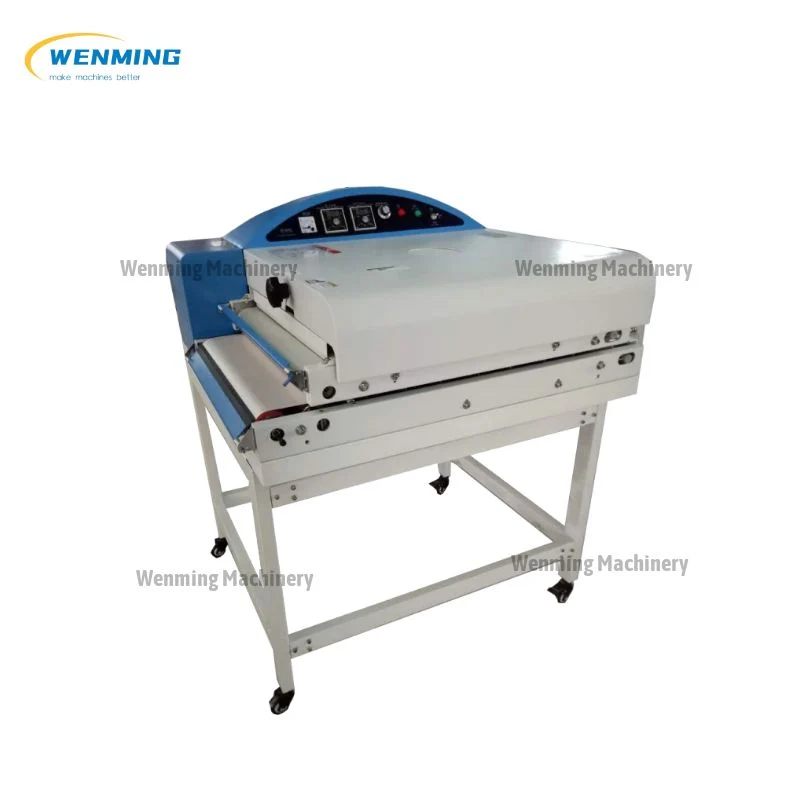

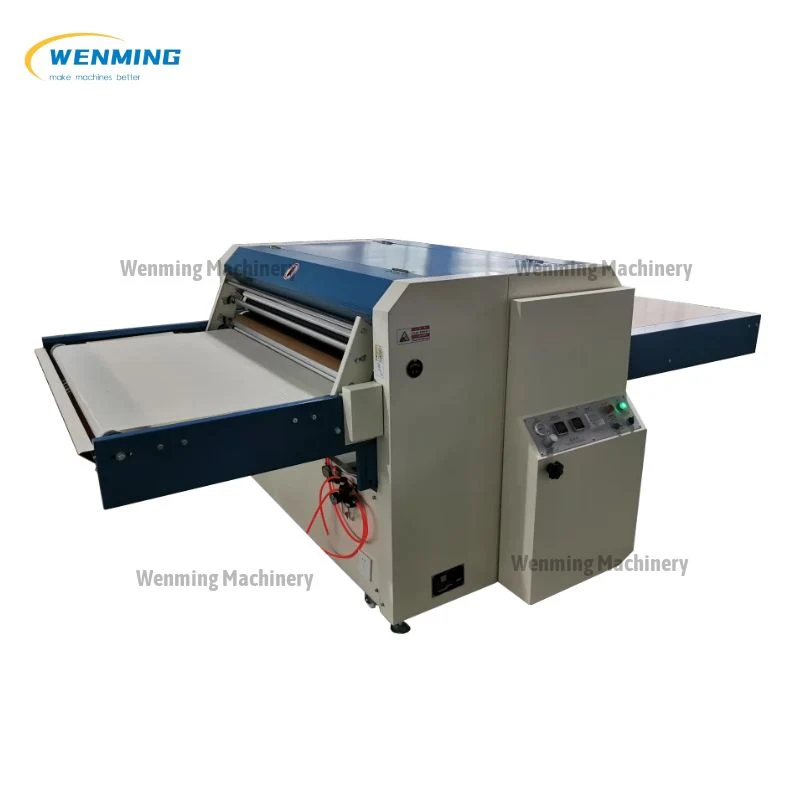

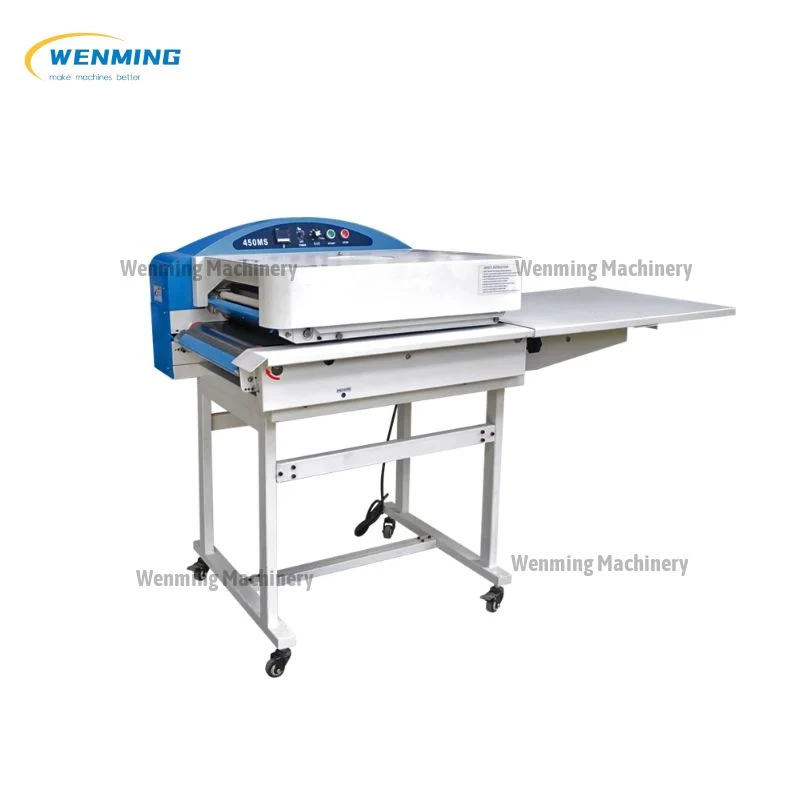

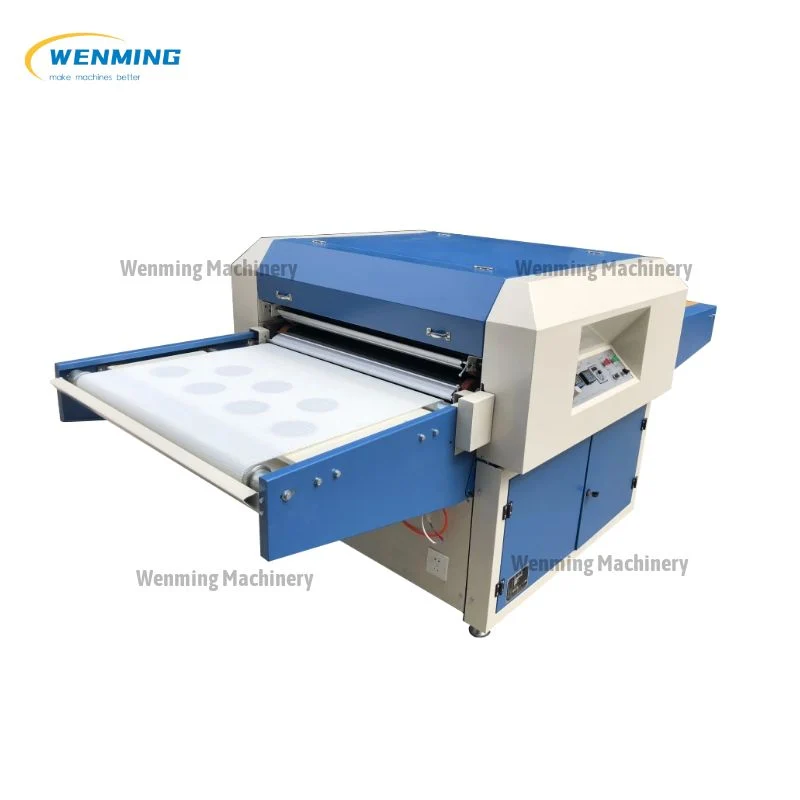

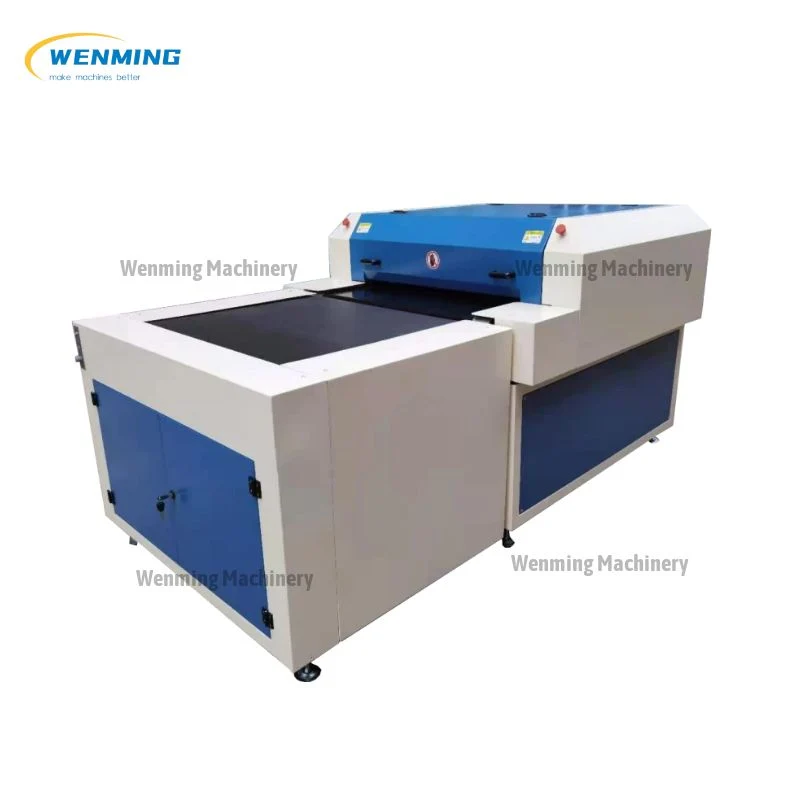

3.PIctures of Textile Fusing Machine:
