Multi-function Rhinestone Setting Machine Fabric Fusing Machine For Sale

Multi-function Rhinestone Setting Machine Fabric Fusing Machine For Sale

1.Product introduction of Rhinestone Setting Machine：

fabric rhinestone heat press machine uses controlled heat and pressure to transfer hotfix rhinestones onto fabric surfaces. It delivers professional-quality results ideal for clothing, accessories, and custom textile designs. This machine ensures strong adhesion, fast operation, and professional-grade decorative results.

Features:
Precise temperature and time control
Double roller double pressure, providing strong and lasting bonding
Versatility, can be used for both hot drilling and bonding of fabrics

2.Technical Parameters of Rhinestone Setting Machine：

Model	WM-1200E	WM-1600E	WM-1800E	WM-2000E
Voltage	3P/380V/50HZ
Power	21KW	27KW	32KW	36KW
Pressure Mold	Mechanical Roller Pressure
Rubber Shaft Diameter	100mm*2
Temperature	0-220℃(ASR+SSR)
Heater material	Electric heat pipe And Aluminum alloy radiator
Hot Area Diameter	1200*1500	1600*1500	1800*1500	2000*1500
Max Fusing Width	1100mm	1500mm	1700mm	1900mm
Dimension	3.45*1. 78*1.28	3.45*2.18*1.28	3.45*2.38*1.28	3.45*2.58*1.28
Wooden Box Size	1.95*2.11*1.5	2.35*2.11*1.5	2.55*2.11*1.5	2.75*2.11*1.5
Belt                Automatic Adjustment	Automatic
Speed Range	2- 15m/min
Belt	Seam belt
Speed Control System	Conversionand Gear motor
Internal Structure	Linear Structure,Clear and Sample
About safety	Full Range Use Scram Button

Contact Us to Get a Quote

Zhengzhou Wenming Machinery Co.,Ltd Address: Waibao Industrial Park No. 139 Yangjin Road Jinshui District Zhengzhou City, Zhengzhou, Henan, China. Office:0086-13-303-831586  Whatsapp/Wechat：+8615638141737 Email:  [email protected] You can contact us to get more details of machines or let us know your requriement we can design and manufature machine according to your need. Click to leave your information and requirements

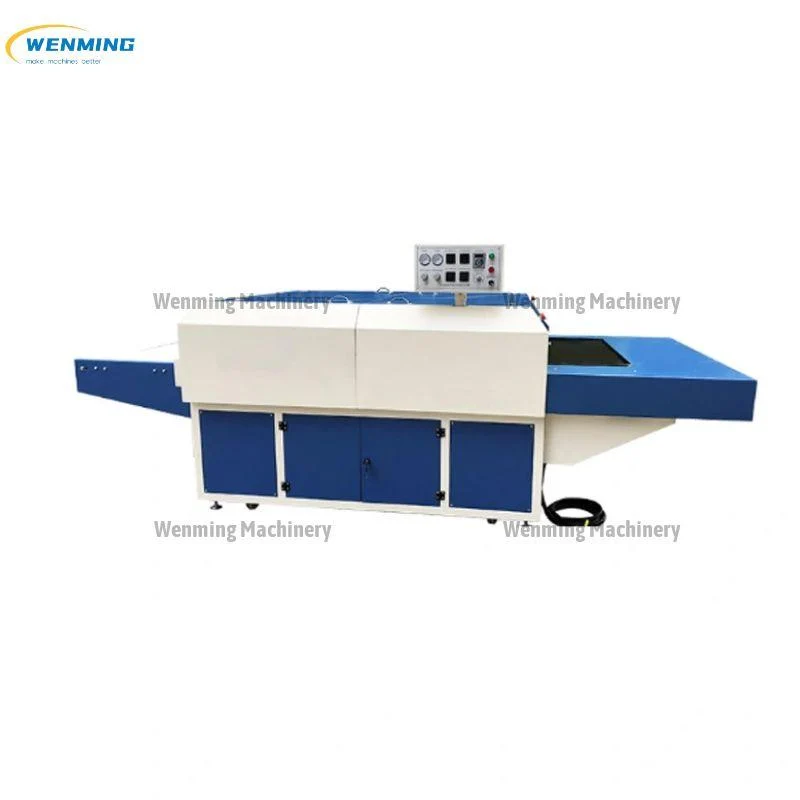

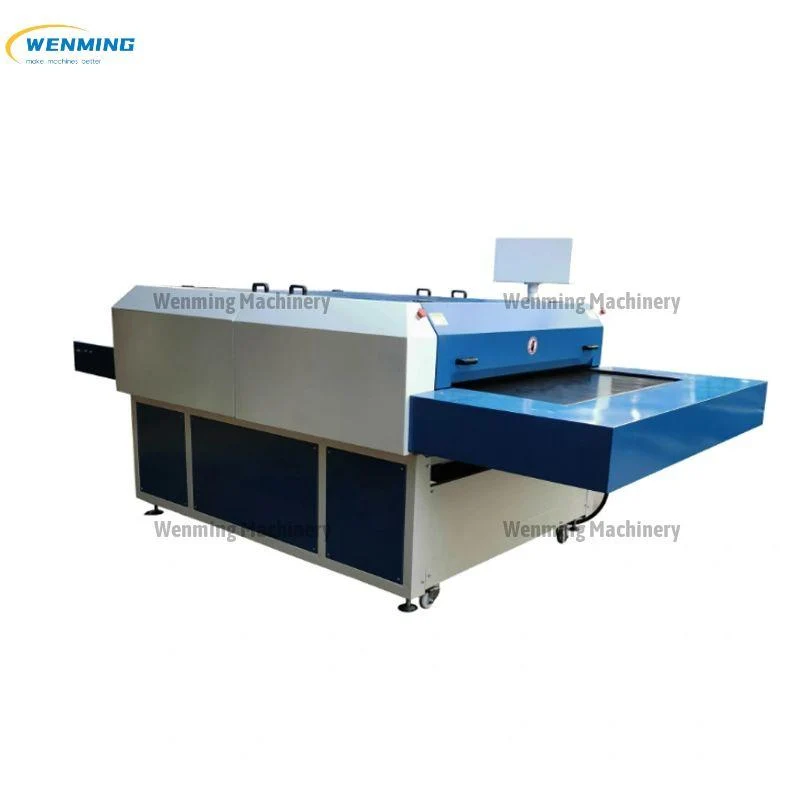

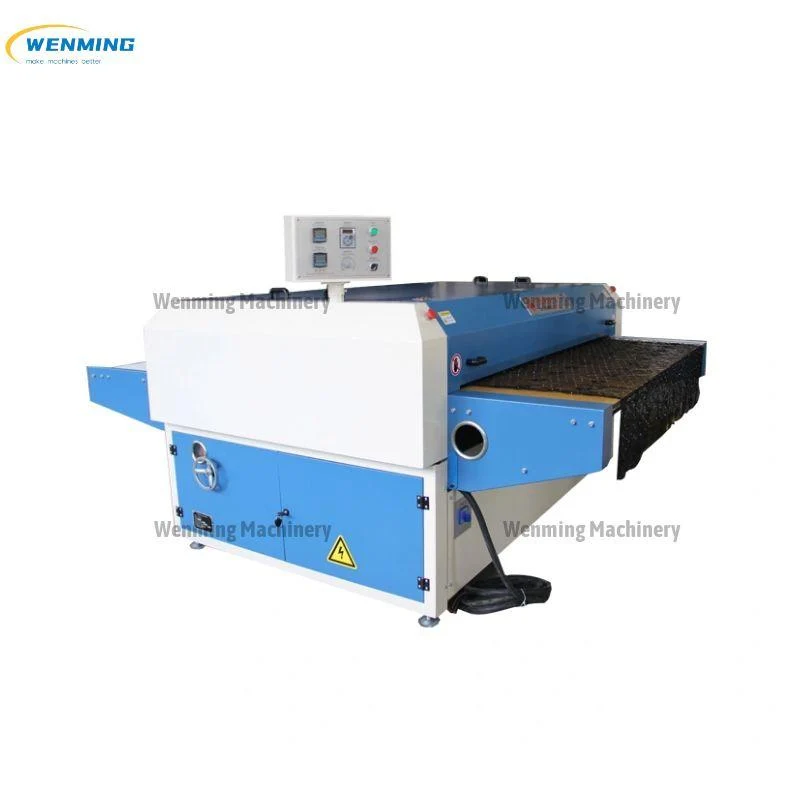

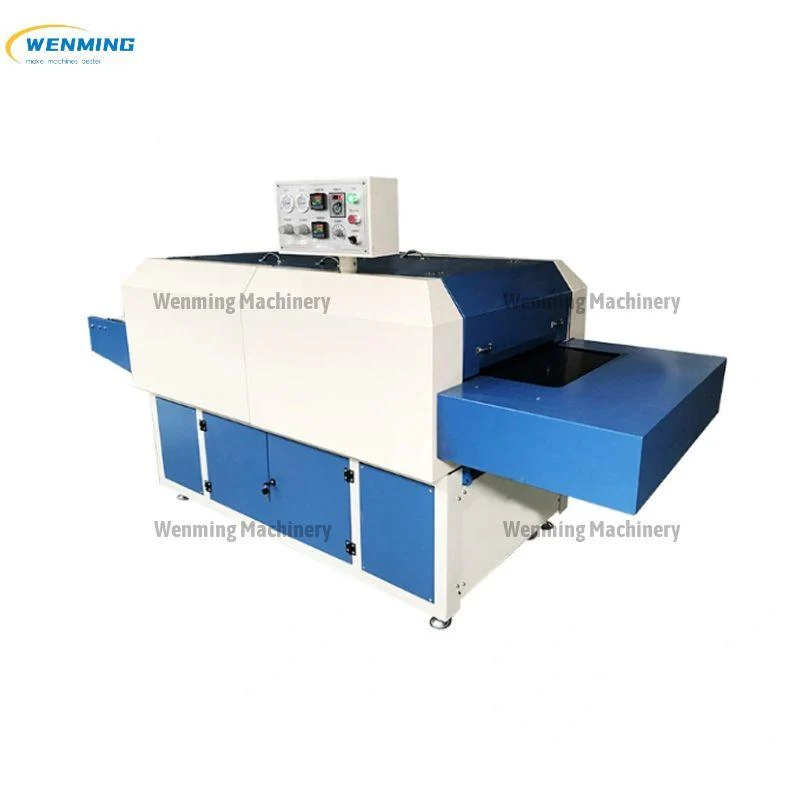

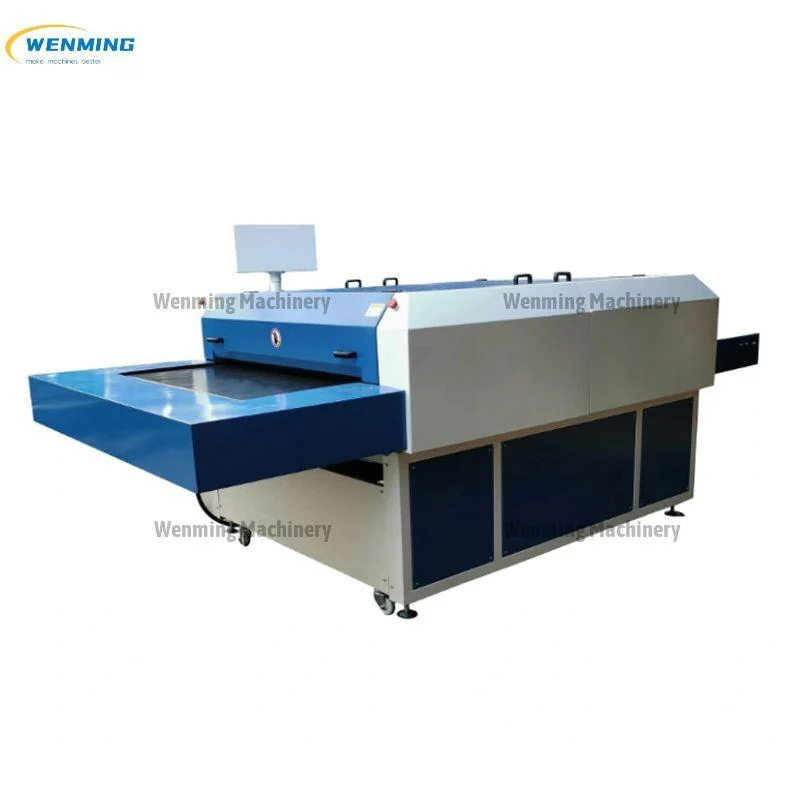

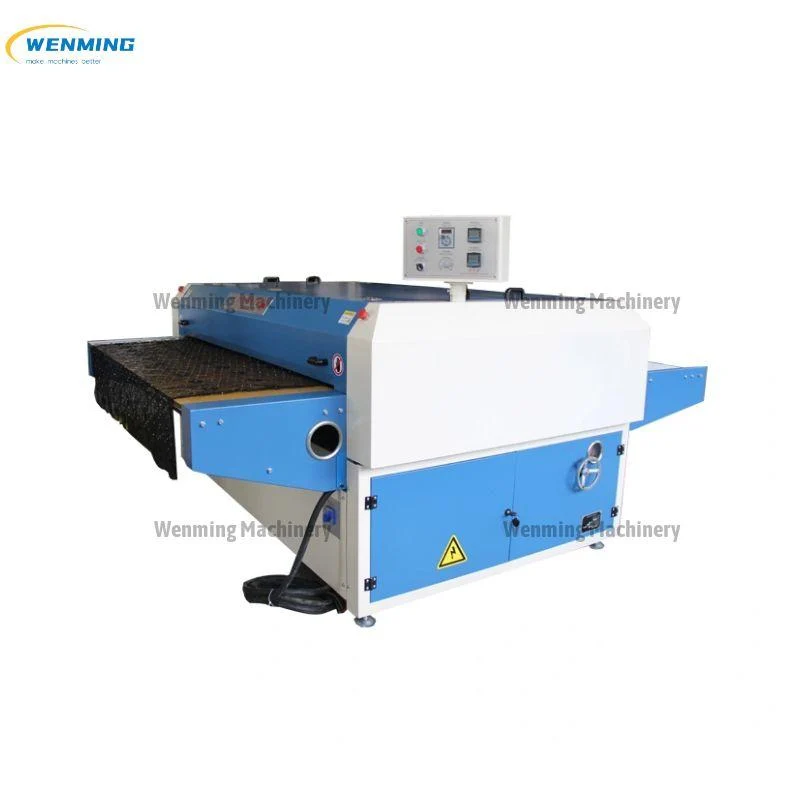

3.PIctures of Rhinestone Setting Machine：
